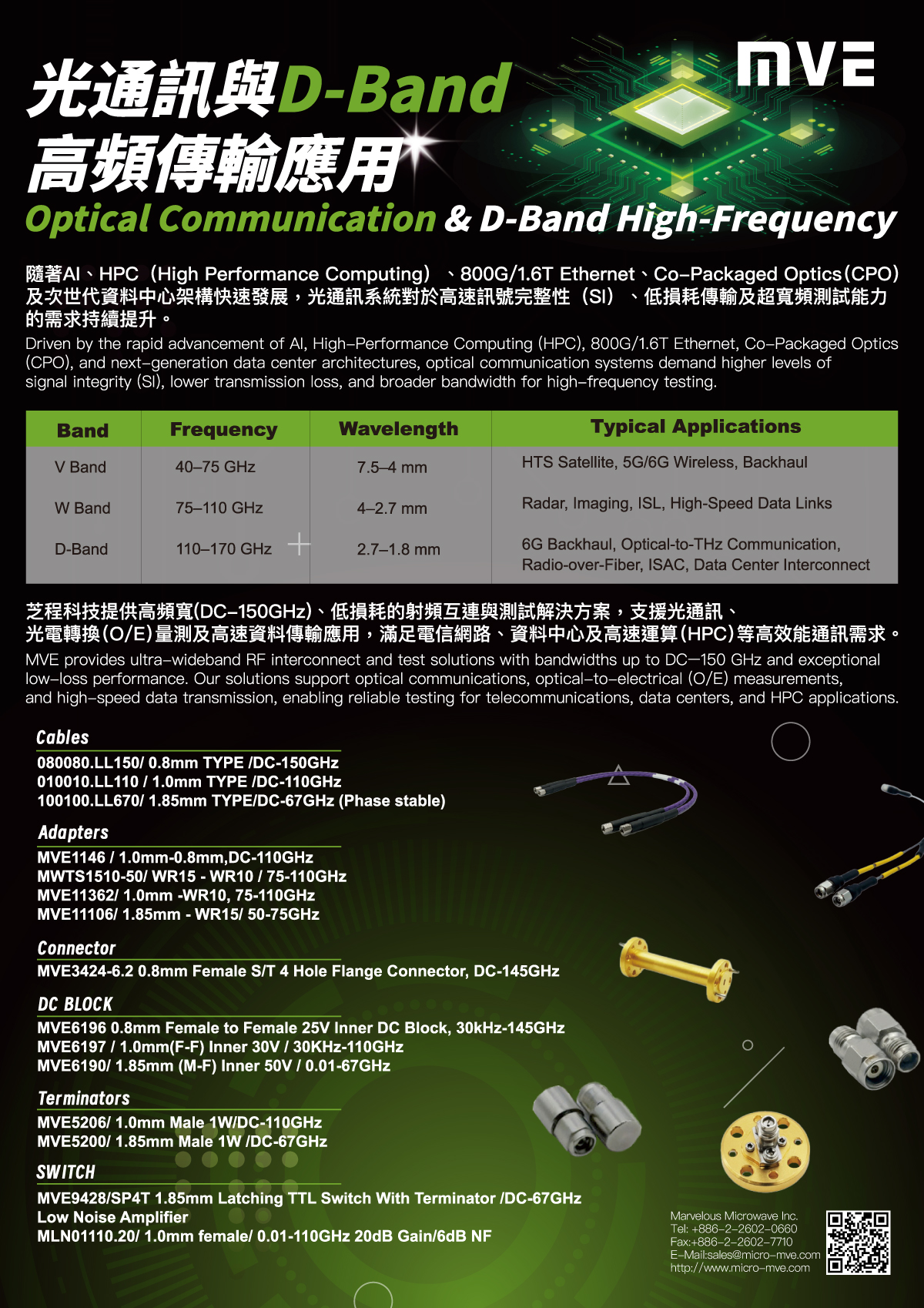

MVE – Optical Communication & D-Band High-Frequency
Driven by the rapid advancement of AI, High-Performance Computing (HPC), 800G/1.6T Ethernet, Co-Packaged Optics (CPO), and next-generation data center architectures, optical communication systems demand higher levels of signal integrity (SI), lower transmission loss, and broader bandwidth for high-frequency testing.
| Band | Frequency | wavelength | typical Applications |
|---|---|---|---|
| V Band | 40–75 GHz | 7.5–4 mm | HTS Satellite、5G/6G Wireless、Backhaul |
| W Band | 75–110 GHz | 4–2.7 mm | Radar、Imaging、ISL、High-Speed Data Links |
| D-Band | 110–170 GHz | 2.7–1.8 mm | 6G Backhaul、Optical-to-THz Communication、Radio-over-Fiber、ISAC、Data Center Interconnect |
MVE provides ultra-wideband RF interconnect and test solutions with bandwidths up to DC–150 GHz and exceptional low-loss performance. Our solutions support optical communications, optical-to-electrical (O/E) measurements, and high-speed data transmission, enabling reliable testing for telecommunications, data centers, and HPC applications.
Cables
- 080080.LL150 / 0.8mm TYPE / DC-150GHz
- 010010.LL110 / 1.0mm TYPE / DC-110GHz
- 100100.LL670 / 1.85mm TYPE / DC-67GHz (Phase stable)
Adapters
- MVE1146 / 1.0mm–0.8mm, DC-110GHz
- MWTS1510-50 / WR15–WR10 / 75–110GHz
- MVE11362 / 1.0mm–WR10 / 75–110GHz
- MVE11106 / 1.85mm–WR15 / 50–75GHz
Connector
- MVE3424-6.2 / 0.8mm Female S/T 4 Hole Flange Connector, DC-145GHz
DC BLOCK
- MVE6196 / 0.8mm Female to Female 25V Inner DC Block, 30kHz–145GHz
- MVE6197 / 1.0mm (F-F) Inner 30V / 30kHz–110GHz
- MVE6190 / 1.85mm (M-F) Inner 50V / 0.01–67GHz
Terminators
- MVE5206 / 1.0mm Male 1W / DC-110GHz
- MVE5200 / 1.85mm Male 1W / DC-67GHz
SWITCH
- MVE9428 / SP4T 1.85mm Latching TTL Switch With Terminator / DC-67GHz
Low Noise Amplifier
- MLN01110.20 / 1.0mm female / 0.01–110GHz / 20dB Gain / 6dB NF
